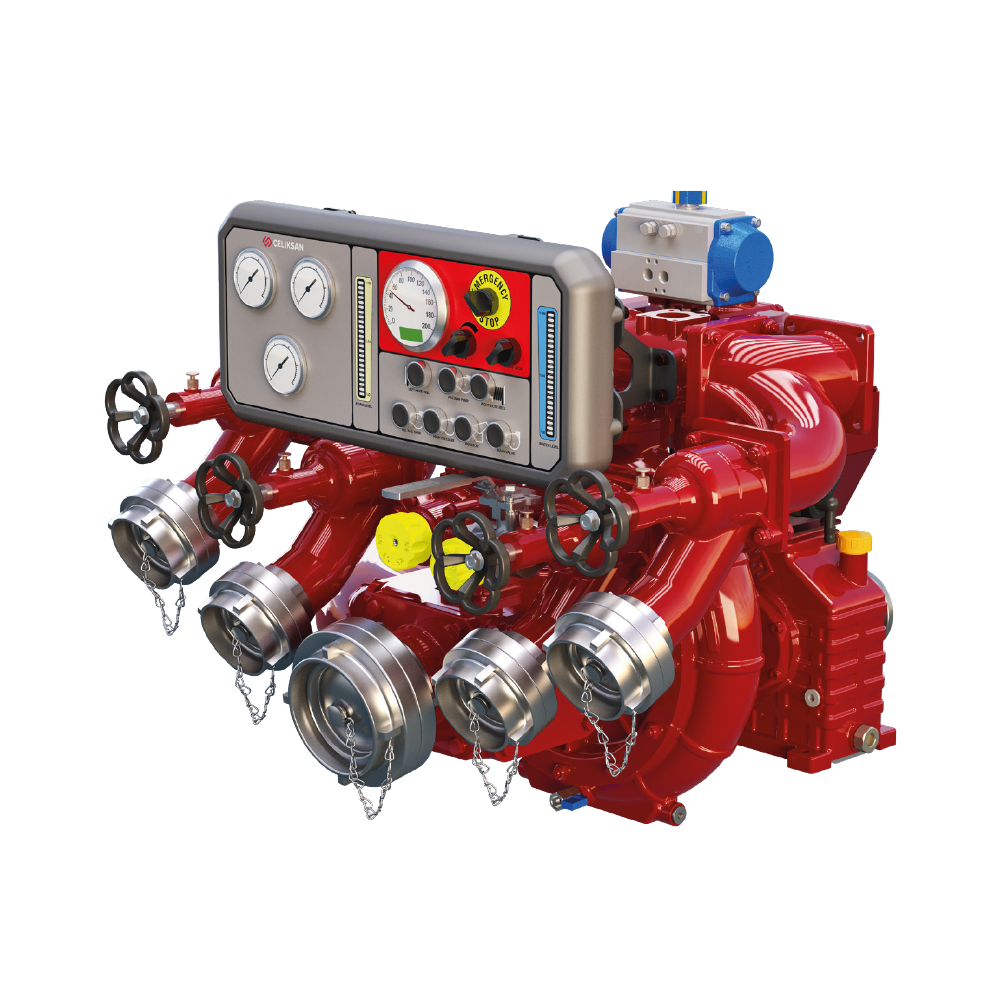

It is the patented pioneer series of Çeliksan company. This series, which is one of the world’s market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines.
Advanced Engineering • Superior Performance
Versatile dual-pressure system for optimal performance across all applications.
Engineered for versatility, seamlessly integrates with various configurations.
Fully certified and tested to meet European safety and quality standards.
Advanced sealing technology eliminates the need for regular maintenance.
Quick-access filter design for effortless maintenance and cleaning.
Lightweight yet durable construction with superior corrosion resistance.
Universal mounting system compatible with global vehicle specifications.
Intelligent automation for optimal suction performance in all conditions.
Lightweight aluminum fan delivers efficient airflow with reduced pressure.
Heavy-duty bronze construction for maximum high-pressure performance.
Integrated pressure relief system for safe and controlled operation.
Engineered for whisper-quiet operation, minimizing noise disturbance.
Integrated heating system ensures reliable operation in extreme cold.
Automatic temperature-controlled drainage for system protection.
Technical Specifications
| SPECIFICATION | CNH 10-150 RPM INCREASER |
CNH 10-150 ML |
|---|---|---|
| LOW PRESSURE FLOW RATE | 1500 l/min 396 gpm | 1500 l/min 396 gpm |
| HIGH PRESSURE FLOW RATE | 40 bar 250-400 l/min 66-105 gpm | 40 bar 250-400 l/min 66-105 gpm |
| NORMAL PRESSURE | 10 bar 145 psi | 10 bar 145 psi |
| NORMAL PUMP SPEED | 3000 rev/min rpm | 3000 rev/min rpm |
| MAXIMUM PUMP SPEED | 3200 rev/min rpm | 3200 rev/min rpm |
| MINIMUM IDLE SPEED | 700 rev/min rpm | 700 rev/min rpm |
| MINIMUM SUCTION SPEED | 2500 rev/min rpm | 2500 rev/min rpm |
| MAXIMUM SUCTION SPEED | 3200 rev/min rpm | 3200 rev/min rpm |
| MAXIMUM PRESSURE | 54.5 bar 790 psi | 54.5 bar 790 psi |
| WEIGHT | 128.6 kg 283.8 lbs | 107.2 kg 236.5 lbs |
| SUCTION SPEED, 7.5 M DEPTH | 30 seconds | 30 seconds |
| OPERATING TEMPERATURE | -15°C / +55°C 5°F / 131°F | -15°C / +55°C 5°F / 131°F |
| DIMENSIONS (L x W x H) | 668 x 844 x 740 mm 26.3 x 33.2 x 29.1 in | 668 x 883 x 740 mm 26.3 x 34.8 x 29.1 in |
| THERMAL DRAIN VALVE | 72°C 161°F | 72°C 161°F |
| REDUCER RATIO OPTIONS | 1/2.04 - 1/2.55 - 1/2.95 | 1/1 |
